上海凯迅发动机有限公司是专业从事135、138柴油发动机研发、生产、销售的综合性内燃机企业。本公司于上世纪90年代建厂，具有近二十几年的生产、销售和研发历史，与多家科研院所结成紧密合作关系。
凯迅产品分6缸和12缸两大系列，缸径分别又135mm和138mm两个类别，行程有150、155、158、160、168等多个品种，功率覆盖150kw—1200kw。并拥有中华人民共和国质量检验检疫总局颁发的“工业产品生产许可证”，并融入ISO9001质量认证体系。
我厂开发的“凯普牌”柴油机，油耗达206g/kw.h,较传统135柴油机232g/kw.h.相比，降低了终端用户运行成本，并符合国家二级排放，即达到节能又达到环保之双重效果。
Shanghai Kaixun Engine Co., Ltd. is a comprehensive internal combustion engine enterprise specializing in the research and development, production, and sales of 135 and 138 diesel engines. Our company was established in the 1990s and has a history of nearly 20 years in production, sales, and research and development. We have formed close cooperative relationships with multiple research institutes.
Kaixun products are divided into two series: 6-cylinder and 12 cylinder, with cylinder diameters of 135mm and 138mm respectively. There are multiple types of stroke, including 150, 155, 158, 160, 168, etc., with power ranging from 150kw to 1200kw. And it holds the "Industrial Product Production License" issued by the General Administration of Quality Inspection and Quarantine of the People's Republic of China, and is integrated into the ISO9001 quality certification system.
The "Kaipu brand" diesel engine developed by our factory has a fuel consumption of 206g/kw. h, which is lower than the traditional 135 diesel engine's 232g/kw. h. It reduces the operating costs for end-users and meets the national second level emissions standards, achieving a dual effect of energy conservation and environmental protection.
| 一、柴油发电机组参数Parameters of diesel generator sets | |||||||
| 机组型号 Unit model | 电压 (V) Voltage | 频率 (Hz) Frequency | 相数 Phase | 功率因数 PF | 电流 A Current | 常用功率kw/kva Common power | 备用功率kw/kva Standby power |
| LHGF-950 | 400V/230V | 50 | 3 | 0.8 | 1710A | 950KW/1188KVA | 1045KW/1306KVA |
| LHGF-950 | 220V/127V | 60 | 3 | 0.8 | 3120A | 950KW/1188KVA | 1045KW/1306KVA |
| 1. 发动机功率与海拔高度关系：海拔高度1500米以上，每升高300米，功率下降4%。海拔不可高3000米 Relationship between engine power and altitude: Above 1500 meters, power decreases by 4% The altitude cannot be higher than 3000 meters for every 300 meters increase. 2. 发动机功率与环境温度关系：环境温度高40摄氏度时，每超过10摄氏度，发动机功率降低3%。 Relationship between engine power and ambient temperature: When ambient temperature is above 40 ° C, engine power decreases by 3% for every 10 ° C. | |||||||
| 二、柴油机（引擎）技术参数Technical parameters of diesel engines | |
| 发动机品牌: Enginebrand: | 凯普/上海凯迅发动机有限公司 Kaipu / Shanghai Kaixun Engine Co., Ltd |
| 发动机型号: Enginemodel: | KPV4TD |
| 发动机功率: Thepoweroftheengine | 1260KW |
| 气缸型式: Cylindertype | 12缸V列、4冲程 12 cylinder, 4 stroke V |
| 缸径*行程: Bore*stroke: | 138*168(mm) |
| 吸气方式: Aspiration | 涡轮增压带中冷 Turbocharged with intercooler |
| 额定转速: Ratedspeed | 1500rpm |
| 燃油消耗率： Fuelconsumptionrate: | ≤198g/kW·h |
| 排量: Displacement: | 35.3L |
| 冷却方式: Coolingmode | 强制水冷 Forced water cooling |
| 调试稳定性: Debuggingstability | ≤5％ |
| 启动方式: Startup mode: | DC24V |
| 三、发电机参数（Electric machine parameters）： | |
| 发电机品牌： Generator brand： | 互泰发电机 HUTAI generator |
| 发电机型号： Generator model： | HTW-950 |
| 额定功率： Rated power | 950KW |
| 额定电压： Rated voltage： | 400V/230V 220V/380V |
| 额定电流： Rated current: | 1710A |
| 额定频率： Rated frequency： | 50Hz |
| 额定转速： Rated speed： | 1500rpm |
| 励磁方式： Excitation mode： | 无刷自励 Brushless self excitation |
| 电压调整范围： Voltage regulation range | ≥5％ |
| 电压波动范围： Voltage fluctuation range: | ≤±5％ |
| 绝缘等级： Insulation grade: | H |
| 防护等级： Protection level: | IP21 |
| 四、机组另选配置The unit configuration is optional： | ||
| 电瓶浮充电器 Battery float charger | ATS自动负载转换屏 ATS automatic load conversion screen | |
| 防雨型机组 Rainproof unit | 静音型机组（箱柜） Silent type unit (cabinet) | |
| 分体式日用燃油箱、一体式底座燃油箱 Split-type daily-use fuel tanks and integrated base fuel tanks | 带远程监控“三遥”功能机组控制屏 Control panel of the unit with remote monitoring "three-remote" function | |
| 移动拖车型电站 Mobile trailer type power station | 机油、柴油、水套、防冷凝加热器 Engine oil, diesel, water jacket, anti-condensation heater | |
| ATS全自动开关ATS automatic switch | |
| 保护功能：保证主电源故障时自动切换到备用电源，保证供电的连续性。Protective function：ensure automatic switching to backup power supply in case of main powerfailure, thereby ensuring the continuity of power supply. |
|
| 多台机组并机柜 Multiple units are paralleled in a cabinet | |
| 并联柜是一种专用配电柜，用于多台发电机组（不间断电源）并联运行。实现多台发电机组的同步输出、电流共享控制和系统管理，为关键负载提供更大功率、更高可靠性的冗余不间断电源保护 A parallel cabinet is a specialized distribution cabinet used to operate multiple gensets (uninterruptible power supplies) in parallel. It realizes synchronous output, current sharing control, and system management of multiple gensets, providing greater power and higher reliability redundant uninterruptible power supply protection for critical loads. |  |
| 远程控制Remote control | |
| 远程控制可实现对发电机组的实时监控、远程启停、参数调整、故障预警等功能，确保设备稳定运行，显著提高运维效率，特别适用于无人电站或应急供电场景Remote control enables real-time monitoring, remote start stop, parameter adjustment, and fault warning of generator sets, ensuring stable equipment operation and significantly improving operation and maintenance efficiency, especially suitable for unmanned power stations or emergency power supply scenarios |  |
| 机组尺寸及结构Unit size and structure | |

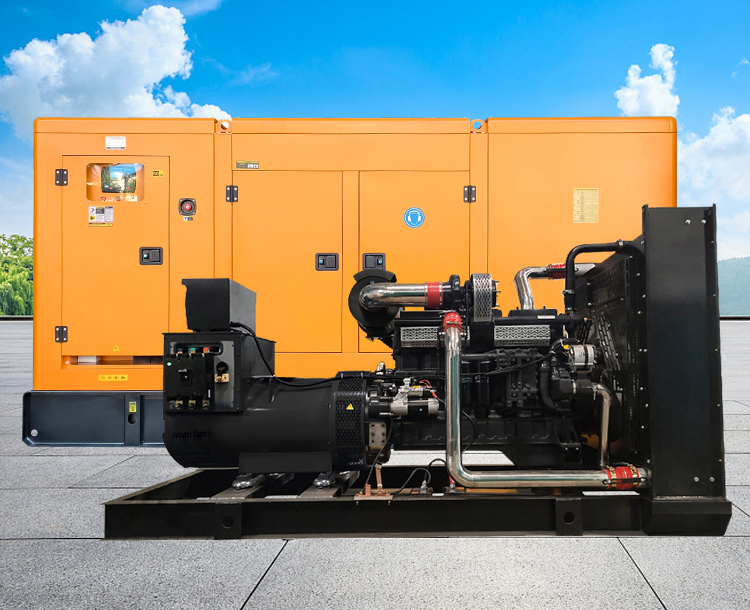

| 开式发电机组的尺寸 Dimensions of open type genset | 静音式发电机组的尺寸 The dimensions of the silent generator set |
| L*W*H 3900*2000*2300（mm） | L*W*H 6000*2100*2300（mm） |
| Weight 4850（Kg） | Weight 9070（Kg） |
产品订购：凯普950KW柴油发电机组 KPV4TD 配全铜线无刷交流发电机 大功率发电机
